Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SOONY or OEM
  • Model Number: SY-IR6287MW series
  • Type: Analog Camera
  • Style: Bullet Camera
  • Sensor: CCD
  • Technology: Infrared
  • Special Features: Waterproof / Weatherproof
  • Product Name: 700TVL Effio-E Bullet CCTV Camera with 9-22mm lens
  • Sensor: Original SONY CCD
  • Resolution: 700TVL, /600/540/480/420TVL optional
  • IR LEDs: 72 Pieces
  • IR range: 60 Meters
  • Lens: 2.8-12/9-22/6-15mm lens optional
  • Waterproof: IP66
  • Certificate: CE,FCC,RoHS
  • Warranty: 2 Years
  • Product Type: Analog CCTV Camera

Packaging & Delivery

Packaging Details: Colourful Neutral packing/ 12pcs packed into a carton OEM/ODM welcome: Any of your idea we can help put it on camera package.
Delivery Detail: within 3-7days based on order quantity

Specifications

700TVL Effio-E Bullet CCTV Camera
-100% CCTV Camera Factory
-SONY 4140 + 811 sensor
-Varifocal Lens 2.8-12mm/9-22mm
-60M IR

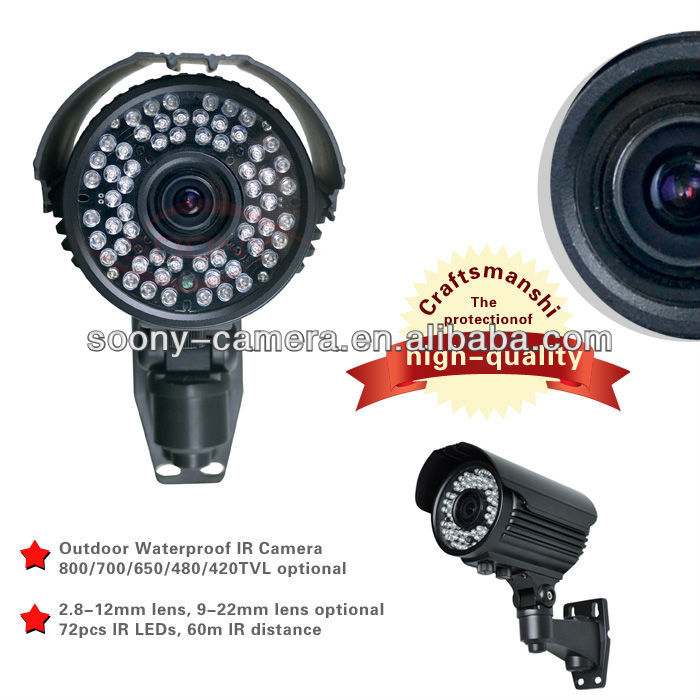

700TVL Effio-E Bullet CCTV Camera with 9-22mm lens



Main Features:

1,The CCD & DSP are original from SONY COP or SHARP COP
2,420/480/650/700/800TV Lines optional, 600/700/800TV Lines built OSD menu, controlled by cable or by UTC
700TVL Sony Effio-E CCd, with the preset OSD menu , Nosie Reduction, Adaptive tone reproduction, Excellence color reproduction function improved the image quality, make this camera can capture a very natural, clear image.
3,Fully weather, and dust proofed, to a rating of IP66 which make it ideal for outdoor use
4,Built-in infrared LED, may work under zero degree of illumination environment
5,72(f 0.5) LED IR illuminators view up to 60meters
6, 2.8-12mm/6-15mm/9-22mm varifocal lens optional, bottom screws for zoom/focus adjustment
7,Color: Gray
8,Aluminum Alloy Housing.
9,DC12V Power supply
10,Easy to install
11,CE/FCC/RoHS certificate approved

Product Details:



Technical parameter:
ModelSY-IR6287MWSY-IR6286MWSY-IR6284MWSY-IR6280HMWSY-IR6280MWSY-IR6282MWSY-IR6283MW
Image Sensor1/3" SONY ICX673AK CCD1/3" SONY ICX639BK CCD1/3" SONY ICX639BK CCD1/3" SONY ICX633BK CCD1/3" SONY ICX633BK CCD1/3" SHARP RJ2321FA CCD1/4" SHARP RJ2421FA CCD
Horizontal Resolution700TV Lines       Hi-sensitivity         Effio, ATR, OSD NR600TV Line Hi-sensitivity, OSD 540TV Line  Hi-sensitivity480TV Line      Hi-sensitivity420TV Line     Hi-sensitivity420TV Line   Hi-sensitivity420TV Line    Hi-sensitivity
TV SystemPAL/NTSC
Effective PixelsPAL:976 (H)× 494(V) NTSC:976 (H) ×582 (V)PAL:795 (H)× 596(V),       NTSC:811 (H) ×508 (V) PAL:752(H)x582(V) NTSC:768(H)x494(V)PAL:500(H)x582(v)
NTSC:510(H)x492(v)
IR LED72pcs Ø5mm IR LEDs
IR project distance60meters
Lensstandard: 2.8-12mm manual zoom lens
6-15mm/9-22mm manual zoom lens is optional
Minimum Illumination0 Lux/F2.0 (LED ON)
IR StatusUnder 10 Lux by CDS
IR Power OnCDS Auto Control
Scanning SystemNTSC:525 Lines,60 Field/sec,
PAL:625 Lines 50 Field/sec
Sync SystemInternal Synchronization
Gamma Characteristic0.45
S/N Ratio  ≥65dB (AGC   OFF)≥54dB (AGC OFF)≥48dB (AGC OFF)
Electronic Shutter TimeNTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec;
Video OutputComposite Signal (1.0Vp-p, 75Ω), BNC
Gain Control(AGCAuto
White BalanceAuto
Backlight CompensationAuto
Operation Temperature-10C~ +50C RH95% MAX
Storage Temperature-20C~ +60C RH95% MAX
WaterproofIP66
Power SupplyDC12V,400mA
Dimension161(w) x 102 (D) x 94(H)mm
Camera Case Colordefault: Gray
weight1.5kg

Packing: (12pcs Packed into a carton)

Lens and View Angle for reference:

Camera Application:

After-Sale Services:
All our products have 2 years warranty, the warranty period is calculated from the date of shippment.

Welcome to Visit SOONY!!!

SOONY Camera Certificate:

 Logo Printing, OEM order welcome, Contact us today to learn more!
